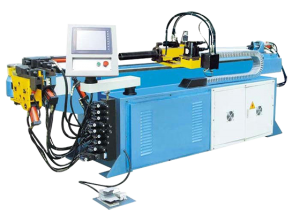

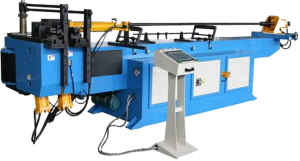

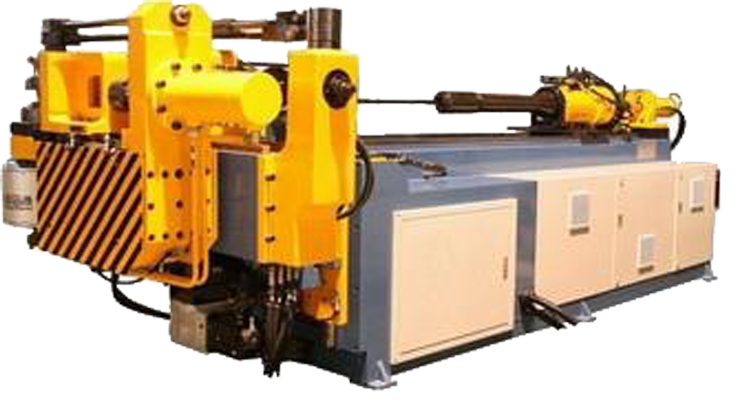

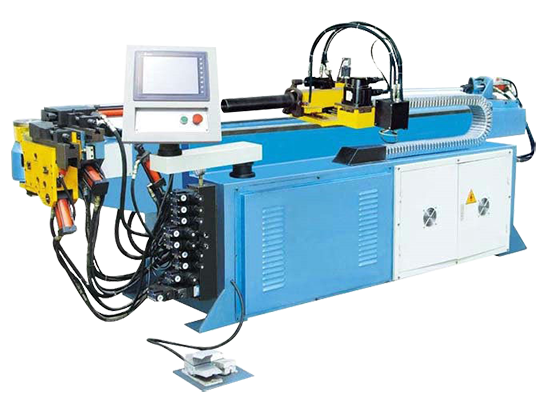

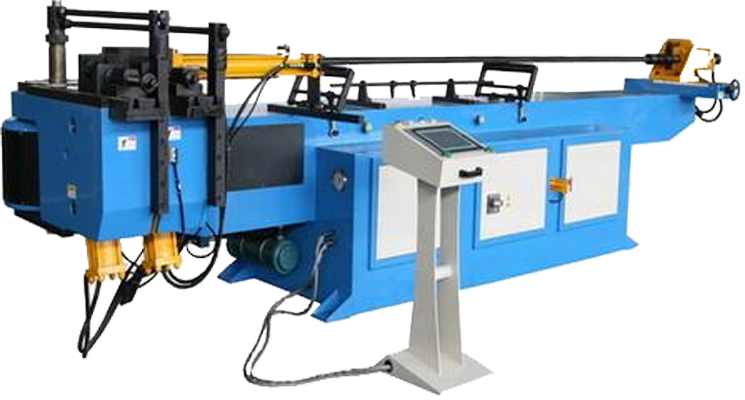

Mandrel Tube Benders
A CNC pipe bender is a high performance tube bending machine which can accurately duplicate the production pipe parts according to the needs of the Chinese market and the current industry, and is an efficient economic pipe bending device controlled by a microcomputer chip technology program. Bending angle, compensation angle, auxiliary axis movement, time and other features are set and controlled by man-machine dialogue. If the manual feeding machine is installed, the bending process of three-dimensional pipe fitting can be realized at one time.
Where it is used?
This type of tube bending machine is usually used in flat or simple three-dimensional pipe bending. Everything from school desk manufacturing, to exhaust tubes, to roll bars manufacturing for racing cars employs some sort of mandrel tube bender.
A single clamping automatically completes the bending process of a bend radius, which is the equipment of the ordinary pipe bending process. The machine is a stable, reliable, cost-effective pipe bending equipment. Many applications are applied to the operation of the pipe bending process. The maximum bending diameter of the series is 450mm.
What Sets African Machine Supplies apart?
Our CNC tube bending machine adopts industrial-grade touch screen control system and professional software of pipe benders, driven by servo-motor and hydraulic pressure. Providing the automatic functions of feeding, rotating, die exchanging, drawings reading, editing, file modifying, rebound data adjusting, automatic faults diagnosing and 3D display. The Max. capability of this machine is OD 450mm, after equipped the power push bending function, the Min. bending radius can achieve R=1.5D. This machine is adequate for high precision and complex 3D cold bending of each thick wall or thin wall steel pipe, also the alloy metal. The moves are controlled by the advanced IPC system, increasing the processing quality and producing efficiency. This machine has the advantages of high automation, high precision, high precision, high working efficiency and low labour intensity, It is the most ideal equipment for aerospace, automobile, locomotive, motorcycle, shipyard, petrochemical, electric power, natural gas, nuclear industry, boiler, vehicles, fitness equipment and sports equipment. The range of the multi stacks is from 1 layer to 3 layers.
The range of CNC and NC tube benders is complimented with a range of tube end formers, tube roll formers and disc saws, all of which can be ordered through African Machine Supplies. Call us today to place your order.
The Product
CNC pipe bender is a high performance bending machine which can accurately duplicate the production pipe parts according to the needs of the Chinese market and the current industry, and is an efficient economic pipe bending device controlled by microcomputer chip technology program. Bending angle, compensation angle, auxiliary axis movement time and so on are set and controlled by man-machine dialogue. If the manual feeding machine is installed, the bending process of three-dimensional pipe fitting can be realized at one time. This type of machine is usually used in flat or simple three-dimensional pipe bending. A single clamping automatically completes the bending process of a bend radius, which is the equipment of the ordinary pipe bending process. The machine is a stable, reliable, cost-effective pipe bending equipment. Many applications are applied to the operation of the pipe bending process. The maximum bending diameter of the series is 450mm.
CNC pipe bender adopts industrial-grade touch screen control system and professional software of pipe bender, driving by servo-motor and hydraulic pressure. Providing the automatic functions of feeding, rotating, die exchanging, drawings reading, editing, file modifying, rebound data adjusting, automatic faults diagnosing and 3D display. The Max. capability of this machine is OD 450mm, after equipped the power push bending function, the Min. bending radius can achieve R=1.5D. This machine is adequate for high precision and complex 3D cold bending of each thick wall or thin wall steel pipe, also the alloy metal. The moves are controlled by the advanced IPC system, increasing the processing quality and producing efficiency. This machine has the advantages of high automation, high precision, high precision, high working efficiency and low labor intensity, It is the most ideal equipment for aerospace, automobile, locomotive, motorcycle, shipyard, petrochemical, electric power, natural gas, nuclear industry, boiler, vehicles, fitness equipment and sports equipment. The range of the multi stacks is from 1 layer to 3 layers.
The range of CNC and NC tube benders is complimented with a range of tube end formers , tube roll formers and disc saws
At a glance
The Product
Mandrel tube benders produce perfect bends with uniform diameter and zero deformation.
Suitable for production of school furniture, chairs, exhaust system, hydraulic and high-pressure pipe systems, roll bars, bull bars and game viewing convertions.. Available in NC and full automatic CNC bending. Optional is multi-layer bending, punching and push bending
CNC and NC with optional 3D Rotational
At a glance
Mandrel Tube Bender models
CNC pipe bender is a high performance bending machine which can accurately duplicate the production pipe parts according to the needs of the Chinese market and the current industry, and is an efficient economic pipe bending device controlled by microcomputer chip technology program.
| Max.OD × WT (Mild Steel) | 19.0 5× 1.5 mm |
| Max.OD × WT (Stainless Steel) | 15.88 × 1.5 mm |
| Max.Square Tube × WT (Mild Steel) | 15 × 1.5 mm |
| Max.Round Bar (Mild Steel) | 12 mm |
| Max.Bending Radius | 100 mm |
| Mandrel working Distance | 1200 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 60 deg/sec |
| Feeding speed | 1000 mm/s |
| Rotating Speed | 270 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 2.2 kw |
| Oil Tank Capacity | 160 L |
| Overall Weight | 850 kg |
| Machine Length | 2400 mm |
| Machine Width | 700 mm |
| Machine Height | 1300 mm |
| Operating Height | 900 mm |
| Max.OD × WT (Mild Steel) | 25.4 × 1.5 mm |
| Max.OD × WT (Stainless Steel) | 19.05 × 1.5 mm |
| Max.Square Tube × WT (Mild Steel) | 20 × 1.5 mm |
| Max.Round Bar (Mild Steel) | 18 mm |
| Max.Bending Radius | 100 mm |
| Mandrel working Distance | 1500 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 50 deg/sec |
| Feeding speed | 850 mm/s |
| Rotating Speed | 250 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 4 kw |
| Oil Tank Capacity | 210 L |
| Overall Weight | 1000 kg |
| Machine Length | 3500 mm |
| Machine Width | 800 mm |
| Machine Height | 1350 mm |
| Operating Height | 1015 mm |
| Max.OD × WT (Mild Steel) | 38.1 × 2 mm |
| Max.OD × WT (Stainless Steel) | 31.75 × 1.5 mm |
| Max.Square Tube × WT (Mild Steel) | 30 × 1.5 mm |
| Max.Round Bar (Mild Steel) | 25 mm |
| Max.Bending Radius | 160 mm |
| Mandrel working Distance | 1900 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 45 deg/sec |
| Feeding speed | 800 mm/s |
| Rotating Speed | 250 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 5.5 kw |
| Oil Tank Capacity | 250 L |
| Overall Weight | 1500 kg |
| Machine Length | 4000 mm |
| Machine Width | 850 mm |
| Machine Height | 1400 mm |
| Operating Height | 1015 mm |
| Max.OD × WT (Mild Steel) | 50.8 × 2.5 mm |
| Max.OD × WT (Stainless Steel) | 44.45 × 2 mm |
| Max.Square Tube × WT (Mild Steel) | 40 × 2 mm |
| Max.Round Bar (Mild Steel) | 32 mm |
| Max.Bending Radius | 200 mm |
| Mandrel working Distance | 2300 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 40 deg/sec |
| Feeding speed | 780 mm/s |
| Rotating Speed | 240 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 7.5 kw |
| Oil Tank Capacity | 300 L |
| Overall Weight | 2000 kg |
| Machine Length | 4900 mm |
| Machine Width | 1050 mm |
| Machine Height | 1400 mm |
| Operating Height | 1100 mm |
| Max.OD × WT (Mild Steel) | 63.5 × 3 mm |
| Max.OD × WT (Stainless Steel) | 63.5 × 1.5 mm |
| Max.Square Tube × WT (Mild Steel) | 50 × 2.5 mm |
| Max.Round Bar (Mild Steel) | 38 mm |
| Max.Bending Radius | 270 mm |
| Mandrel working Distance | 2800 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 35 deg/sec |
| Feeding speed | 780 mm/s |
| Rotating Speed | 180 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 7.5 kw |
| Oil Tank Capacity | 300 L |
| Overall Weight | 2900 kg |
| Machine Length | 4900 mm |
| Machine Width | 1050 mm |
| Machine Height | 1500 mm |
| Operating Height | 1100 mm |
| Max.OD × WT (Mild Steel) | 76.2 × 3 mm |
| Max.OD × WT (Stainless Steel) | 76.2 × 1.5 mm |
| Max.Square Tube × WT (Mild Steel) | 60 × 3 mm |
| Max.Round Bar (Mild Steel) | 45 mm |
| Max.Bending Radius | 280 mm |
| Mandrel working Distance | 3000 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 35 deg/sec |
| Feeding speed | 720 mm/s |
| Rotating Speed | 160 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 11 kw |
| Oil Tank Capacity | 380 L |
| Overall Weight | 3500 kg |
| Machine Length | 5300 mm |
| Machine Width | 1300 mm |
| Machine Height | 1550 mm |
| Operating Height | 1150 mm |
| Max.OD × WT (Mild Steel) | 88.9 × 4 mm |
| Max.OD × WT (Stainless Steel) | 88.9 × 2 mm |
| Max.Square Tube × WT (Mild Steel) | 70 × 3.5 mm |
| Max.Round Bar (Mild Steel) | 55 mm |
| Max.Bending Radius | 350 mm |
| Mandrel working Distance | 3300 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 30 deg/sec |
| Feeding speed | 720 mm/s |
| Rotating Speed | 120 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 15 kw |
| Oil Tank Capacity | 500 L |
| Overall Weight | 4500 kg |
| Machine Length | 6000 mm |
| Machine Width | 1600 mm |
| Machine Height | 1550 mm |
| Operating Height | 1200 mm |
| Max.OD × WT (Mild Steel) | 101.6 × 5 mm |
| Max.OD × WT (Stainless Steel) | 101.6 × 2 mm |
| Max.Square Tube × WT (Mild Steel) | 80 × 4 mm |
| Max.Round Bar (Mild Steel) | 60 mm |
| Max.Bending Radius | 400 mm |
| Mandrel working Distance | 3600 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 25 deg/sec |
| Feeding speed | 700 mm/s |
| Rotating Speed | 80 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 15 kw |
| Oil Tank Capacity | 550 L |
| Overall Weight | 6500 kg |
| Machine Length | 6000 mm |
| Machine Width | 1900 mm |
| Machine Height | 1600 mm |
| Operating Height | 1200 mm |
| Max.OD × WT (Mild Steel) | 114.3 × 6 mm |
| Max.OD × WT (Stainless Steel) | 114.3 × 2.5 mm |
| Max.Square Tube × WT (Mild Steel) | 90 × 5 mm |
| Max.Round Bar (Mild Steel) | 70 mm |
| Max.Bending Radius | 500 mm |
| Mandrel working Distance | 4000 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 16 deg/sec |
| Feeding speed | 600 mm/s |
| Rotating Speed | 60 deg/sec |
| Feeding Precision | ± 0.1 mm |
| Rotating Precision | ± 0.1 mm |
| Bending Precision | ± 0.1 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 22 kw |
| Oil Tank Capacity | 780 L |
| Overall Weight | 8000 kg |
| Machine Length | 6500 mm |
| Machine Width | 2000 mm |
| Machine Height | 1650 mm |
| Operating Height | 1250 mm |
| Max.OD × WT (Mild Steel) | 127 × 7 mm |
| Max.OD × WT (Stainless Steel) | 127 × 4 mm |
| Max.Square Tube × WT (Mild Steel) | 110 × 6 mm |
| Max.Round Bar (Mild Steel) | 80 mm |
| Max.Bending Radius | 550 mm |
| Mandrel working Distance | 5000 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 10 deg/sec |
| Feeding speed | 500 mm/s |
| Rotating Speed | 40 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 22 kw |
| Oil Tank Capacity | 1000 L |
| Overall Weight | 15000 kg |
| Machine Length | 8500 mm |
| Machine Width | 2200 mm |
| Machine Height | 1750 mm |
| Operating Height | 1350 mm |
| Max.OD × WT (Mild Steel) | 152.4 × 8 mm |
| Max.OD × WT (Stainless Steel) | 152.4 × 3.5 mm |
| Max.Square Tube × WT (Mild Steel) | 120 × 6.5 mm |
| Max.Round Bar (Mild Steel) | 90 mm |
| Max.Bending Radius | 600 mm |
| Mandrel working Distance | 5500 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 8 deg/sec |
| Feeding speed | 400 mm/s |
| Rotating Speed | 30 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 30 kw |
| Oil Tank Capacity | 1200 L |
| Overall Weight | 18000 kg |
| Machine Length | 9000 mm |
| Machine Width | 2400 mm |
| Machine Height | 1800 mm |
| Operating Height | 1450 mm |
| Max.OD × WT (Mild Steel) | 168.3 × 10 mm |
| Max.OD × WT (Stainless Steel) | 168.3 × 4 mm |
| Max.Square Tube × WT (Mild Steel) | 130 × 7 mm |
| Max.Round Bar (Mild Steel) | 110 mm |
| Max.Bending Radius | 700 mm |
| Mandrel working Distance | 6000 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 6 deg/sec |
| Feeding speed | 400 mm/s |
| Rotating Speed | 25 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 30 kw |
| Oil Tank Capacity | 1400 L |
| Overall Weight | 20000 kg |
| Machine Length | 9500 mm |
| Machine Width | 2800 mm |
| Machine Height | 1850 mm |
| Operating Height | 1500 mm |
| Max.OD × WT (Mild Steel) | 177.8 × 12 mm |
| Max.OD × WT (Stainless Steel) | 177.8 × 4.5 mm |
| Max.Square Tube × WT (Mild Steel) | 160 × 7 mm |
| Max.Round Bar (Mild Steel) | 120 mm |
| Max.Bending Radius | 750 mm |
| Mandrel working Distance | 6000 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 2 deg/sec |
| Feeding speed | 300 mm/s |
| Rotating Speed | 20 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 37 kw |
| Oil Tank Capacity | 1500 L |
| Overall Weight | 33000 kg |
| Machine Length | 11000 mm |
| Machine Width | 3200 mm |
| Machine Height | 2200 mm |
| Operating Height | 1550 mm |
| Max.OD × WT (Mild Steel) | 219.1 × 14 mm |
| Max.OD × WT (Stainless Steel) | 219.1 × 6 mm |
| Max.Square Tube × WT (Mild Steel) | 200 × 8 mm |
| Max.Round Bar (Mild Steel) | 130 mm |
| Max.Bending Radius | 900 mm |
| Mandrel working Distance | 6000 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 2 deg/sec |
| Feeding speed | 250 mm/s |
| Rotating Speed | 20 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 45 kw |
| Oil Tank Capacity | 1700 L |
| Overall Weight | 45000 kg |
| Machine Length | 11500 mm |
| Machine Width | 3300 mm |
| Machine Height | 2400 mm |
| Operating Height | 1600 mm |
| Max.OD × WT (Mild Steel) | 244.5 × 15 mm |
| Max.OD × WT (Stainless Steel) | 244.5 × 6.5 mm |
| Max.Square Tube × WT (Mild Steel) | 220 × 10 mm |
| Max.Round Bar (Mild Steel) | 145 mm |
| Max.Bending Radius | 1100 mm |
| Mandrel working Distance | 6000 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 2 deg/sec |
| Feeding speed | 250 mm/s |
| Rotating Speed | 20 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 55 kw |
| Oil Tank Capacity | 2000 L |
| Overall Weight | 55000 kg |
| Machine Length | 12500 mm |
| Machine Width | 3900 mm |
| Machine Height | 2800 mm |
| Operating Height | 1750 mm |
| Max.OD × WT (Mild Steel) | 273 × 15 mm |
| Max.OD × WT (Stainless Steel) | 273 × 6.5 mm |
| Max.Square Tube × WT (Mild Steel) | 240 × 12 mm |
| Max.Round Bar (Mild Steel) | 160 mm |
| Max.Bending Radius | 1100 mm |
| Mandrel working Distance | 6000 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 2 deg/sec |
| Feeding speed | 100 mm/s |
| Rotating Speed | 10 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 17.5 MPa |
| Pump Motor | 75 kw |
| Oil Tank Capacity | 2000 L |
| Overall Weight | 62000 kg |
| Machine Length | 13000 mm |
| Machine Width | 4000 mm |
| Machine Height | 3300 mm |
| Operating Height | 1800 mm |
| Max.OD × WT (Mild Steel) | 323.9 × 17.5 mm |
| Max.OD × WT (Stainless Steel) | 323.9 × 12.7 mm |
| Max.Square Tube × WT (Mild Steel) | 260 × 16 mm |
| Max.Round Bar (Mild Steel) | 230 mm |
| Max.Bending Radius | 1300 mm |
| Mandrel working Distance | 6000 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 1.5 deg/sec |
| Feeding speed | 80 mm/s |
| Rotating Speed | 10 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 31 MPa |
| Pump Motor | 75 kw |
| Oil Tank Capacity | 3000 L |
| Overall Weight | 70000 kg |
| Machine Length | 16000 mm |
| Machine Width | 5200 mm |
| Machine Height | 3600 mm |
| Operating Height | 2200 mm |
| Max.OD × WT (Mild Steel) | 457 × 23.8 mm |
| Max.OD × WT (Stainless Steel) | 457 × 14.3 mm |
| Max.Square Tube × WT (Mild Steel) | 300 × 20 mm |
| Max.Round Bar (Mild Steel) | 250 mm |
| Max.Bending Radius | 1500 mm |
| Mandrel working Distance | 6000 mm |
| Max.Bending Angle | 0 – 190 deg |
| Tube Bending Speed | 1 deg/sec |
| Feeding speed | 50 mm/s |
| Rotating Speed | 5 deg/sec |
| Feeding Precision | ± 0.15 mm |
| Rotating Precision | ± 0.15 mm |
| Bending Precision | ± 0.15 mm |
| Max. Working Pressure | 31 MPa |
| Pump Motor | 75 kw |
| Oil Tank Capacity | 3500 L |
| Overall Weight | 80000 kg |
| Machine Length | 19000 mm |
| Machine Width | 6500 mm |
| Machine Height | 4100 mm |
| Operating Height | 2500 mm |
Our Clients
