Thread Rolling See what we Can do for you Thread Rolling Take a look below

Thread Rollers

Thread rolling of bolts increases the tensile strength of the material, making it suitable for anchor bolts, studs and cylinder assemblies. Fixed length or rod production comes standard on all models of thread roller purchased through African Supplies.

There are many competing manufacturing methods to create screws and bolts, and thread rolling is one of the leading ones at it produces a structurally sound high performing bolts at a high rate.

How does it work?

Thread rolling is one of the most efficient ways of creating bolts, both in speed and material requirements.  The method behind rolling a thread is that a blank bolt is passed through a set of turning dies. These dies roll the blank bolt between them and from the thread into it.

Only ductile materials are able to be rolled, and the threads are cold formed. However, this increases the thread’s yield strength, surface finish, hardness, and wear resistance. This allows thread rolling to be a viable manufacturing method for pipe thread, scaffold thread, threaded bars and anchor bolts.

What you can expect from us

At African Supplies, our thread rollers will be able to shape and form a variety of bolts out of most ductile materials. Thread rolling is an extremely profitable business, and we have the right tools for the job.

  1. Durability
    Thread rollers are a constant operation machine. As such they need to be able to handle extended periods of being in and working. With that in mind, the thread rollers at African Supplies are built to be tough and will last a number of years.
  2. High Production Capacity
    With and average production time of one bolt per second, thread rolling is a very highly efficient method of creating bolts. Ideal for large production runs, thread rolls can form thousands of bolts per day, meaning that they are very profitable pieces of machinery
  3. High Tensile Strength
    The cold forming production of thread rollers ensures that the bolts produced are of a very high quality. The tolerances are extremely tight due to the pressure forming method, and the work hardening of the material creates a very hard material with a very high tensile strength

With African Supplies, any engineering challenge that you may face, we have the tool for. Contact us today to place your order!

The Product

Thread rolling of bolts increase tensile strength of material making it suitable for anchor bolts, studs and cylinder assemble. Fixed length or rod production standard on all models..

1
DURABLE
2
HIGH PRODUCTION CAPACITY
3
HIGH TENSILE STRENGTH

At a glance

Power
0%
Efficiency
0%
Sustainability
0%
Weight
0%
Ease of use
0%
Operational requirement
0%

The Product

Thread rolling of bolts increase tensile strength of material making it suitable for anchor bolts, studs and cylinder assemble. Fixed length or rod production standard on all models..

1
Durable
2
HIGH PRODUCTION CAPACITY
3
HIGH TENSILE STRENGTH

At a glance

Power
0%
Efficiency
0%
Sustainability
0%
Weight
0%
Ease of use
0%
Operational requirement
0%
LOOKING FOR QUALITY AND AFFORDABLE
EQUIPMENT FOR YOUR NEXT PROJECT?
LOOKING FOR QUALITY AND AFFORDABLE
EQUIPMENT FOR YOUR NEXT PROJECT?

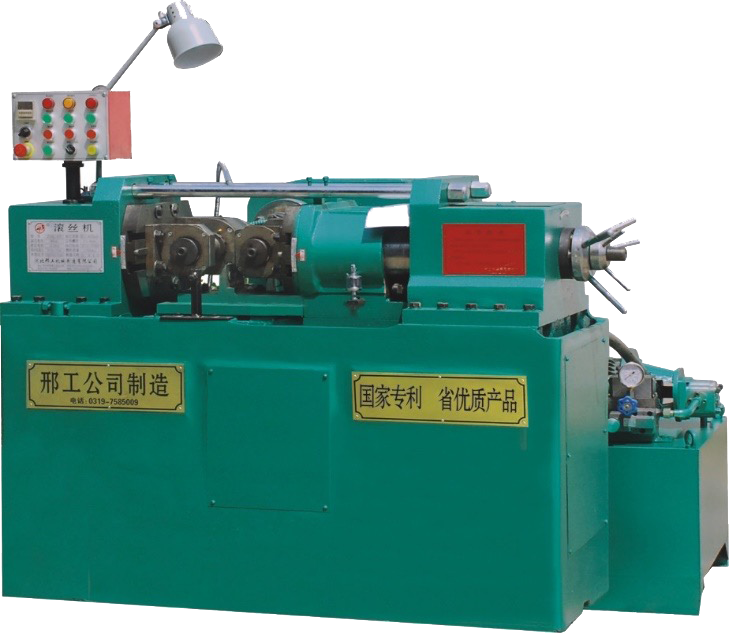

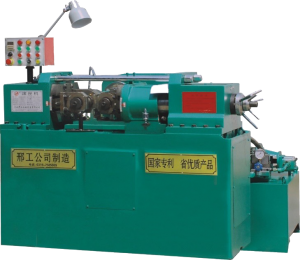

Thread Rolling models

Standard Thread Rollers
Pressure (kN) 150
Working Dia (mm) 4 – 42
OD of roller (mm) 120 – 170
BD of roller (mm) 54
Dip angle of main shaft (degrees) +- 5
Centre distance of main shaft (mm) 120 – 140
Rotary speed of main shaft (r/min) 36, 47, 60, 78
Feed speed of movable shaft (mm/s) 5
Thread length (mm/s) No limited
Main power (kw) 4
Hydraulic power (kw) 2.2
Weight (kg) 1700
Size (mm) 1500 x 1380 x 1140
Pressure (kN) 200
Working Dia (mm) 4 – 80
Max Thread Pitch (mm) 8
OD of roller (mm) 220
BD of roller (mm) 75
Roller width max (mm) 180
Dip angle of main shaft (degrees) +- 15
Centre distance of main shaft (mm) 150 – 30
Rotary speed of main shaft (r/min) 20, 25, 31, 41, 51, 64
Feed speed of movable shaft (mm/s) 5
Thread length (mm/s) No limited
Main power (kw) 11
Hydraulic power (kw) 5.5
Weight (kg) 3000
Size (mm) 1790 x 1730 x 1430

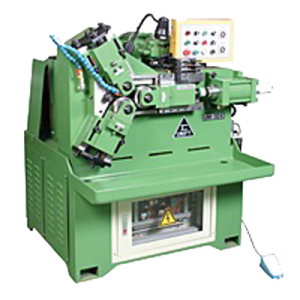

Thread rolling with 3 rolling heads ideal for production of pipe threads. Typically used in production of scaffolding
Work piece diameter (mm) Ø18 – Ø60
Axial pitch for ISO threads (mm) 1.0P – 6.0P
Length of thread rolling (mm) Thru feed rolling: no limited
Spindle speed (r/pm) 220, 350, 580, 720
Thread rolling die (mm)
Diameter Ø120
Bore Ø40
Length 25 x 50
Keyway (mm/s) 8 x 4
Distance of the rolling spindles (mm) 105 – 190
Output (pieces/min) 4 – 25
Swivel of roll-axis ± 3°
Main power motor 5HP 6P(3.7kw)
Hydraulic motor 3 HP (2.2 kw)
Max rolling pressure 12 TONS
Net weight (Approx.) 1300 kgs
Gross weight (Approx.) 1450 kgs
Overall dimension (L x W x H) 1600 x 1500 x 1600 mm
